24-Peg Hook Head, Crank Up Style, for 1.5" Pipe/Pole

24-Peg Hook Head, Crank Up Style, for 1.5" Pipe/Pole

Out of stock

$78
$78
Sale Sold out
Shipping calculated at checkout.

Flexible, interest-free payment plans for eligible orders over $35 available with at checkout.

Also in This Collection

View full details
Star-shaped teal pendant necklace
Price Protection

Guarantee

Blue curved arrow design on black background
FREE Return Shipping

For Exchange/Store Credit Returns

Blue rectangular dog tag with rounded corners and a small square hole in the top right corner.
Reindeer Proof™

Warranty

An outlined delivery truck with speed lines.
Same Day Shipping

When ordered by 2pm CST

The 24-peg crank-up style hook head is designed for mega tree and pole tree builds using 1.5" rigid threaded electrical conduit. With a crank-up system, the hook head lowers to ground level so you can attach all your light strings while standing on the ground, then hoist the loaded hook head back up to the top of the pole. This eliminates the need to attach strings at height. Compatible with pixel strips, pixel strings, and traditional string lighting. The 24-peg version supports up to 24 light strings for a fuller, denser tree appearance compared to the 16-peg version.

The bolts serve two purposes: they can be used as hooks for hanging traditional or pixel string lighting, or they can be used to bolt RGB pixel strips directly to the hook head plate.

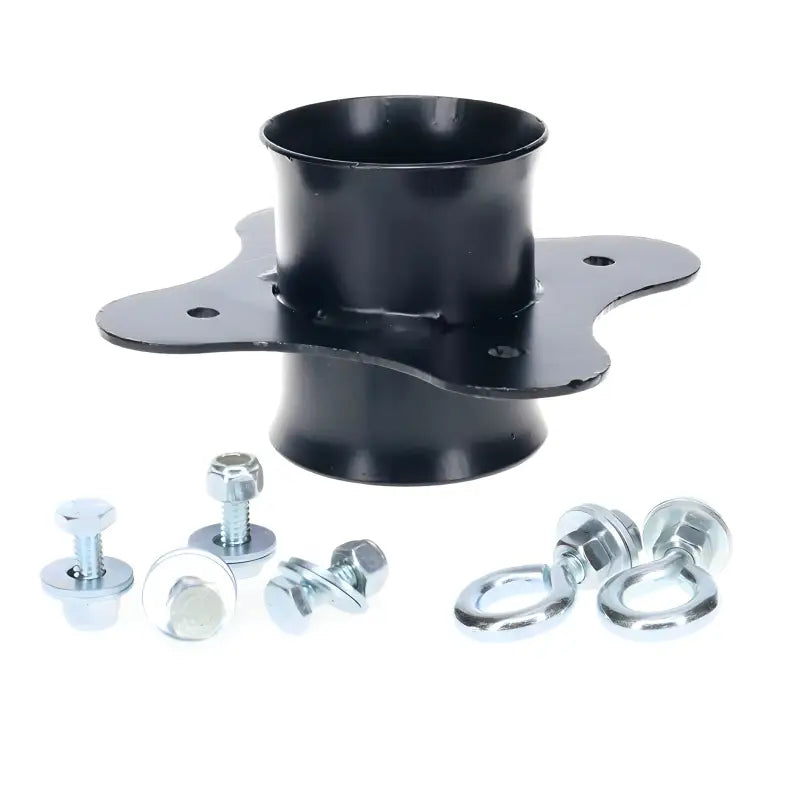

Kit includes:

  • 24-hole topper plate
  • 1.5" crank-up style topper/hook head and mounting bolts
  • 24 bolts (for attaching pixel strips or as hooks for traditional strings)
  • Eye bolts for attaching lift cable

Star mount adaptor is NOT included with the crank-up style hook head. To attach a star topper to the top of your pole, you will need the Guy Wire Adaptor Kit, which includes the star mount adaptor.

Add the Mega Tree Pulley Kit along with the Guy Wire Adaptor Kit for a complete crank-up mega tree hook head solution.

⚠️ Important: With a crank-up hook head, there is nothing stopping the hook head from traveling off the top of the pole if cranked too high. Always use the Guy Wire Adaptor Kit to prevent this.

  • Center sleeve outer diameter: 2.15" (2 and 5/32")
  • Hook head plate outer diameter: 8.75" (8 and 3/4")
  • For use with 1.5" rigid threaded electrical conduit
  • Assembly required
  • 1-season warranty

Note: All mega tree components are designed for use with 1.5" rigid electrical conduit and couplings. They will not work with EMT conduit or plumbing couplings. Rigid electrical conduit couplings are much thinner than plumbing couplings — the hook head must be able to slide over the couplings and will not pass over a plumbing coupling.


Product Help

Questions & Answers

Quick answers for shoppers researching 24-Peg Hook Head, Crank Up Style, for 1.5" Pipe/Pole.

What's the difference between the 16-peg and 24-peg versions?

The only difference is the number of attachment points for light strings. The 24-peg version supports up to 24 strings running from the top of the tree to the ground, resulting in a fuller, denser tree appearance. The 16-peg version supports up to 16 strings.

What's the difference between crank-up and screw-on hook heads?

A crank-up hook head can be raised and lowered along the pole using a pulley system — you lower it to ground level, attach all your light strings, then hoist it up. A screw-on hook head is a fixed, permanent mount that threads onto the top of the pole. Crank-up is generally preferred for taller trees where working at height is impractical.

Do I need the Guy Wire Adaptor Kit with a crank-up hook head?

Yes — for two reasons. First, it provides a mounting point at the top of the pole that prevents the hook head from traveling off the top when cranked too high. Second, if you want to attach a star topper, the star mount adaptor is included with the Guy Wire Adaptor Kit (not with the crank-up hook head itself).

What center pole must I use?

This hook head is designed for 1.5" rigid threaded electrical conduit only — not EMT and not electrical conduit.

Need broader help? Visit our Christmas Lights FAQ for quick answers on rooflines, bulb sizes, clips, accessories, and planning your display.

Accessory Specifications

Review Rating 0.00 / 5 (0 reviews)
Item SKU TCLE-3G-HH24-CRANK
Warranty Length 1 Season
Product Style Installation Accessory
Item Color Black
Review Rating 0.00 / 5 (0 reviews)
Item SKU TCLE-3G-HH24-CRANK
Warranty Length 1 Season
Product Style Installation Accessory
Item Color Black
