Replacement Sockets, C9 / E17, SPT1, Pack of 25, White

Replacement Sockets, C9 / E17, SPT1, Pack of 25, White

by IndustriaLite®

Replacement socket for missing or damaged E12 C7 sockets
Use with 18 AWG SPT1 stringers or wire

In stock

Regular price $7
Regular price Sale price $7
Sale Sold out
Shipping calculated at checkout.

Flexible, interest-free payment plans for eligible orders over $35 available with Shop Pay at checkout.

Quantity
View full details
Star-shaped teal pendant necklace
Price Protection

Guarantee

Blue curved arrow design on black background
FREE Return Shipping

For Exchange/Store Credit Returns

Blue rectangular dog tag with rounded corners and a small square hole in the top right corner.
Reindeer Proof™

Warranty

An outlined delivery truck with speed lines.
Same Day Shipping

When ordered by 2pm CST

These C9/E17 replacement sockets are used for two purposes: replacing a damaged or missing socket on an existing C9 stringer, and building completely custom C9 socket stringers from scratch. Thread them onto SPT1 zipcord wire at any spacing you want, then add vampire plugs on each end to finish the run.

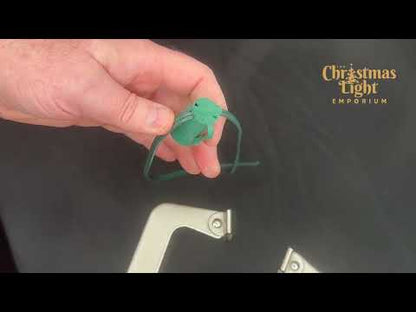

Installation is straightforward: place the socket over the wire so the wire sits in the slot along the socket body, then press the bottom cap onto the socket. The cap forces the wire down onto the teeth inside the socket base, which pierce the insulation and make the electrical connection — no stripping required. Pressing the cap on by hand can be difficult; a pair of C-clamps or woodworking/welding clamps makes the job much easier by applying even pressure across the cap.

  • C9/E17 base — fits standard C9 bulbs (LED or incandescent)
  • For use with 18 AWG SPT1 wire
  • White — designed for white wire
  • Height: 1-1/4"
  • Outer diameter at base: 5/8"
  • Outer diameter at top: 15/16"
  • Pack of 25
  • Rated for indoor and outdoor use
  • 1-season warranty

Product Help

Questions & Answers

Quick answers for shoppers researching Replacement Sockets, C9 / E17, SPT1, Pack of 25, White.

Can I use these to build a custom socket stringer from scratch?

Yes — that's one of the two main use cases. Thread these sockets onto SPT1 zipcord wire at whatever spacing you need, then finish both ends with vampire plugs to build a completely custom-length C9 socket run. You can also use a pre-made socket wire spool if you want evenly spaced sockets already on the wire.

How do I install a replacement socket?

Place the socket over the wire so the wire runs through the slot along the socket body. Then press the bottom cap firmly onto the socket — it will click into place and force the wire down onto the internal teeth, which pierce the insulation to make the electrical connection. No wire stripping is needed. The cap can be hard to press on by hand; using a pair of C-clamps or woodworking/welding clamps to apply even pressure makes installation much easier.

What's the difference between SPT1 and SPT2 sockets?

The socket itself is the same; the difference is which wire type the socket is designed to crimp onto. SPT1 sockets are made for SPT1 wire; SPT2 sockets are made for SPT2 wire. Always match the socket to the wire type you're using — using an SPT1 socket on SPT2 wire (or vice versa) will not make a reliable electrical connection.

Do these work with LED and incandescent C9 bulbs?

Yes — these are standard E17 base sockets that accept any standard C9 bulb, whether LED or incandescent, screw-in replacement style.

Plug/Wire/Stringer Specifications

Specifications for Replacement Sockets, C9 / E17, SPT1, Pack of 25, White
Specification Value
Review Rating 0.00 / 5 (0 reviews)
Item SKU TCLE-RSOC-C9W
Warranty Length 1 Season
Product Style Installation Accessory
Additional specifications for Replacement Sockets, C9 / E17, SPT1, Pack of 25, White
Specification Value
Item Color White
Quantity Pack of 25
Insulation SPT1
Socket Size E17
Specifications for Replacement Sockets, C9 / E17, SPT1, Pack of 25, White
Specification Value
Review Rating 0.00 / 5 (0 reviews)
Item SKU TCLE-RSOC-C9W
Warranty Length 1 Season
Product Style Installation Accessory
Item Color White
Quantity Pack of 25
Insulation SPT1
Socket Size E17
