Replacement Sockets, C9 / E17, SPT1, Pack of 25, Green
Replacement Sockets, C9 / E17, SPT1, Pack of 25, Green
- Replacement socket for missing or damaged E17 C9 sockets
- Use with 18 AWG SPT1 stringers or wire
In stock
Ships within 24 hours from our D/FW, Texas warehouse. Order by 12pm Central (Mon–Fri) and it ships today. Shipping details
Flexible, interest-free payment plans for eligible orders over $35 available with Shop Pay at checkout.
Couldn't load pickup availability
Not sure which bulb size? Read our C7 vs C9 guide.
Also in This Collection
-
Replacement Sockets, C9 / E17, SPT1, Pack of 25, Green
Current product
-
Replacement Sockets, C9 / E17, SPT2, Pack of 25, Green
View product
-
Replacement Sockets, C9 / E17, SPT1, Pack of 25, White
View product
-
Replacement Sockets, C7 / E12, SPT1, Pack of 25, Green
View product
-
Replacement Sockets, C7 / E12, SPT1, Pack of 25, White
View product
-
Magnetic Replacement Sockets, C9, Green
View product
-
Magnetic Replacement Sockets, C9, White
View product
Guarantee
For Exchange/Store Credit Returns
Warranty
When ordered by 2pm CST
These C9/E17 replacement sockets are used for two purposes: replacing a damaged or missing socket on an existing C9 stringer, and building completely custom C9 socket stringers from scratch. Thread them onto SPT1 zipcord wire at any spacing you want, then add vampire plugs on each end to finish the run.
Installation is straightforward: place the socket over the wire so the wire sits in the slot along the socket body, then press the bottom cap onto the socket. The cap forces the wire down onto the teeth inside the socket base, which pierce the insulation and make the electrical connection — no stripping required. Pressing the cap on by hand can be difficult; a pair of C-clamps or woodworking/welding clamps makes the job much easier by applying even pressure across the cap.
- C9/E17 base — fits standard C9 bulbs (LED or incandescent)
- For use with 18 AWG SPT1 wire
- Green — designed for green wire
- Height: 1-1/4"
- Outer diameter at base: 5/8"
- Outer diameter at top: 15/16"
- Pack of 25
- Rated for indoor and outdoor use
- 1-season warranty
Plug/Wire/Stringer Specifications
| Specification | Value |
|---|---|
| Review Rating | |
| Item SKU | TCLE-RSOC-C9G |
| Warranty Length | 1 Season |
| Product Style | Installation Accessory |
| Item Color | Green |
| Specification | Value |
|---|---|
| Quantity | Pack of 25 |
| Insulation | SPT1 |
| Socket Size | E17 |
| Item Color | Green |
| Specification | Value |
|---|---|
| Review Rating | |
| Item SKU | TCLE-RSOC-C9G |
| Warranty Length | 1 Season |
| Product Style | Installation Accessory |
| Item Color | Green |
| Quantity | Pack of 25 |
| Insulation | SPT1 |
| Socket Size | E17 |
| Item Color | Green |
Product Help
Questions & Answers
Can I use these C9 replacement sockets to build a custom stringer from scratch?
Do these sockets work with LED and incandescent C9 bulbs?
Do I need to strip the wire to install these sockets?
What is the difference between SPT1 and SPT2 sockets?
Need broader help? Visit our Christmas Lights FAQ for quick answers on rooflines, bulb sizes, clips, accessories, and planning your display.
Here's What Other Memory Makers Are Saying:
I order two bags of these sockets. They are good quality and are working well (a patriotic Red-White-Blue theme right now).
As always, make sure you order extra on top of what you _think_ you will need. One bag was perfect - 25 sockets and 25 caps. The other bag has only 22 sockets and 26 caps. Not a problem as I had also order spares.

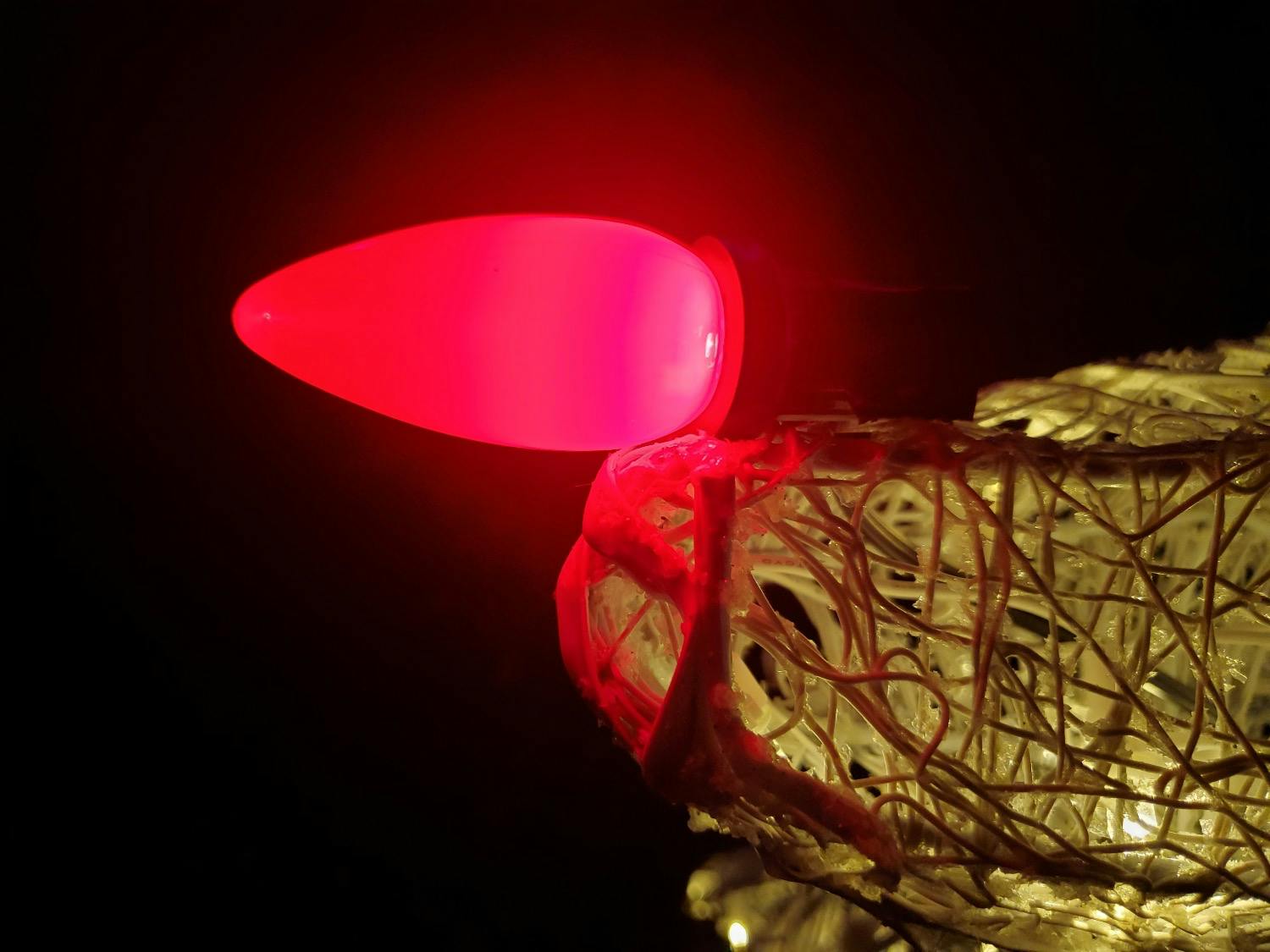

This product has allowed me to replace bad sockets on strands as well as add a few more lights if I am short on a strand by combining with set-1 wire. I also used it to create a red nose on one of my reindeer and set-1 wire to conceal the wire.
I bought commercial lights this for the first time and three sockets broke as I was putting the lights up. I found Christmas Light Emporium online and ordered replacements. Ordering was a cinch and the product was priced right. Email notifications were spot on and the sockets showed up when expected. The sockets worked great, by the way.
Last year, I paid a company to install my outdoor Christmas lights on my house, porch fence, and garage. After the installation, I promptly broke one of the lights with my snowplow...
So this year, I ordered these replacement sockets and tried to install a light where I'd broken the last one. And it worked perfectly! These sockets allow you to add a light at any point along the wire you'd like. As opposed to a normal string of lights that have sockets at specific points only.
It was easy, and definitely worth the money!
I am familiar with the sockets, but it would be nice if they had instructions for how to correctly install them, so you don’t damage them.
Hi John and thanks for taking the time to share your review. We truly appreciate that. And thank you for the recommendation. Happy decorating!
Great quality easy to use.
Thank you for your positive feedback! We are glad to hear that you the Replacement Sockets easy to use. We appreciate your support and hope to continue providing you with excellent products. Thank you for choosing The Christmas Light Emporium!
Worked great, very easy to install.
Your replacement sockets appear to be made for strands that are 16 to 18 gauge wire. My strand is older and made with 12 gauge wire. Yes I had a problem using your socket. Solved the problem buy finding a short piece of 16 gauge wire, mounting the socket to it and then splicing that wire into my strand of lights. That worked but I did that while on a tall extension ladder. I’m nearly 80 years old now making this harder.
HI John and thanks for taking the time to post a review of the replacement sockets. As noted in the product description, 'It is compatible with 18 gauge, SPT1, green wire.' - so, indeed, they will be difficult or impossible to use with a 12 gauge wire. Glad to hear you found a solution though.
Sockets are good work great
Immediately fixed my broken socket issue. Was able to clamp without using any tools.
This makes fixing your strings easy.
Was supposed to be delivered on 10/14 but not received as of 10/22. I have other items purchased and not shipped yet, so I am concerned of the when and If the order will be received. USPS is the shipper.
Just what the Elf ordered , lights are already on my homemade C9 string and look great
worked very well for my purpose.
They are exactly what I needed for a custom lighting project and they worked perfectly!
First time buying from this supplier, bought these from others. Fast shipping, decent price and works as it should. Will buy these again.
These are a great value and has been instrumental in the upkeep of the display last few years.
These are a great value and has been instrumental in the upkeep of the display last few years.
These are a great value and has been instrumental in the upkeep of the display last few years.
These are a great value and has been instrumental in the upkeep of the display last few years.
I made a mistake on my order, I had C9 everything, and then had a brain cramp when I ordered these, I ordered C7s. Christmas Light Emporium folks caught this inconsistency and held my order until they could talk to me. Great job folks.... This saved a lot of annoyance and cost.
With that said, these are great sockets, I have used quite a few of them with no failures.
