GFade - 8 Channel Controller With Pigtail Extension Kit - Now w/ GFade Sync!
GFade - 8 Channel Controller With Pigtail Extension Kit - Now w/ GFade Sync!
FREE Returns With Checkout+** Same Day Shipping on Most Orders
Reindeer Proof™ Warranty
Price Protection Guarantee
In stock
Couldn't load pickup availability

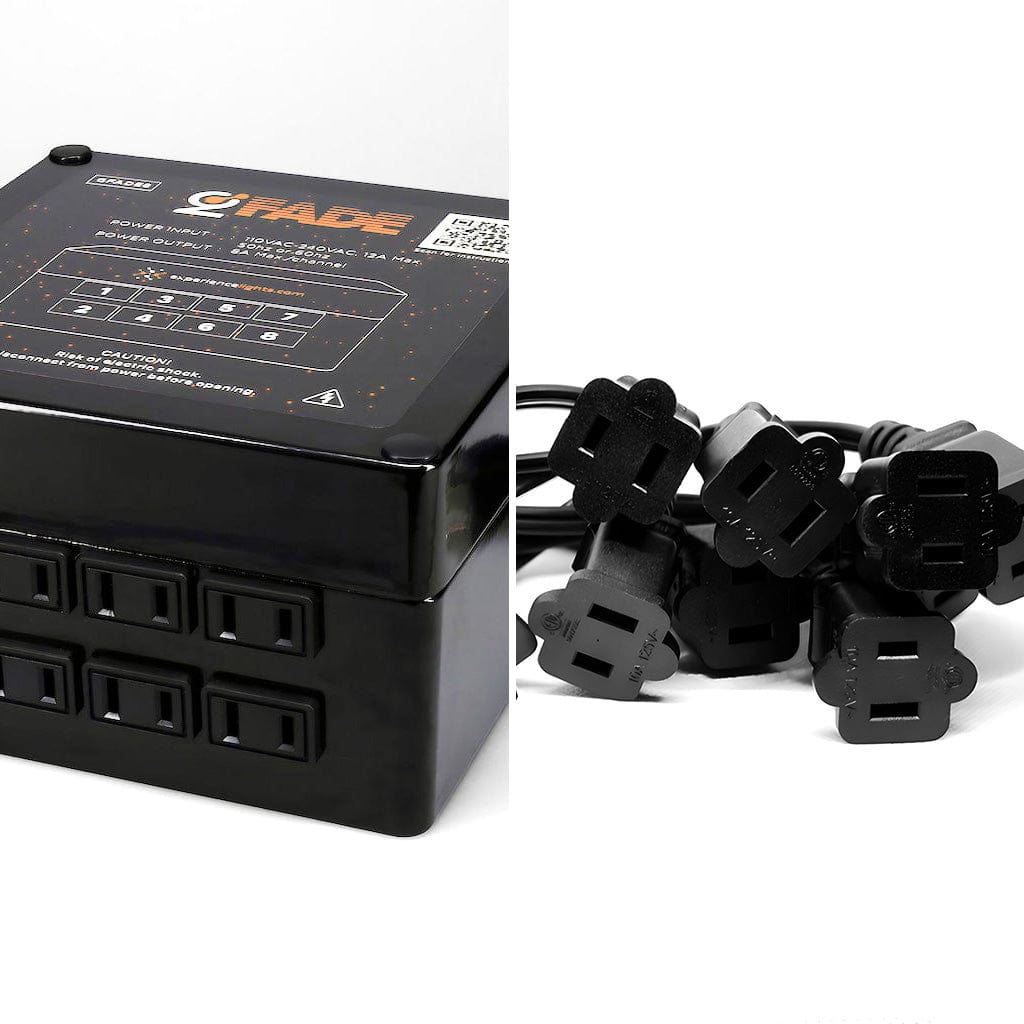

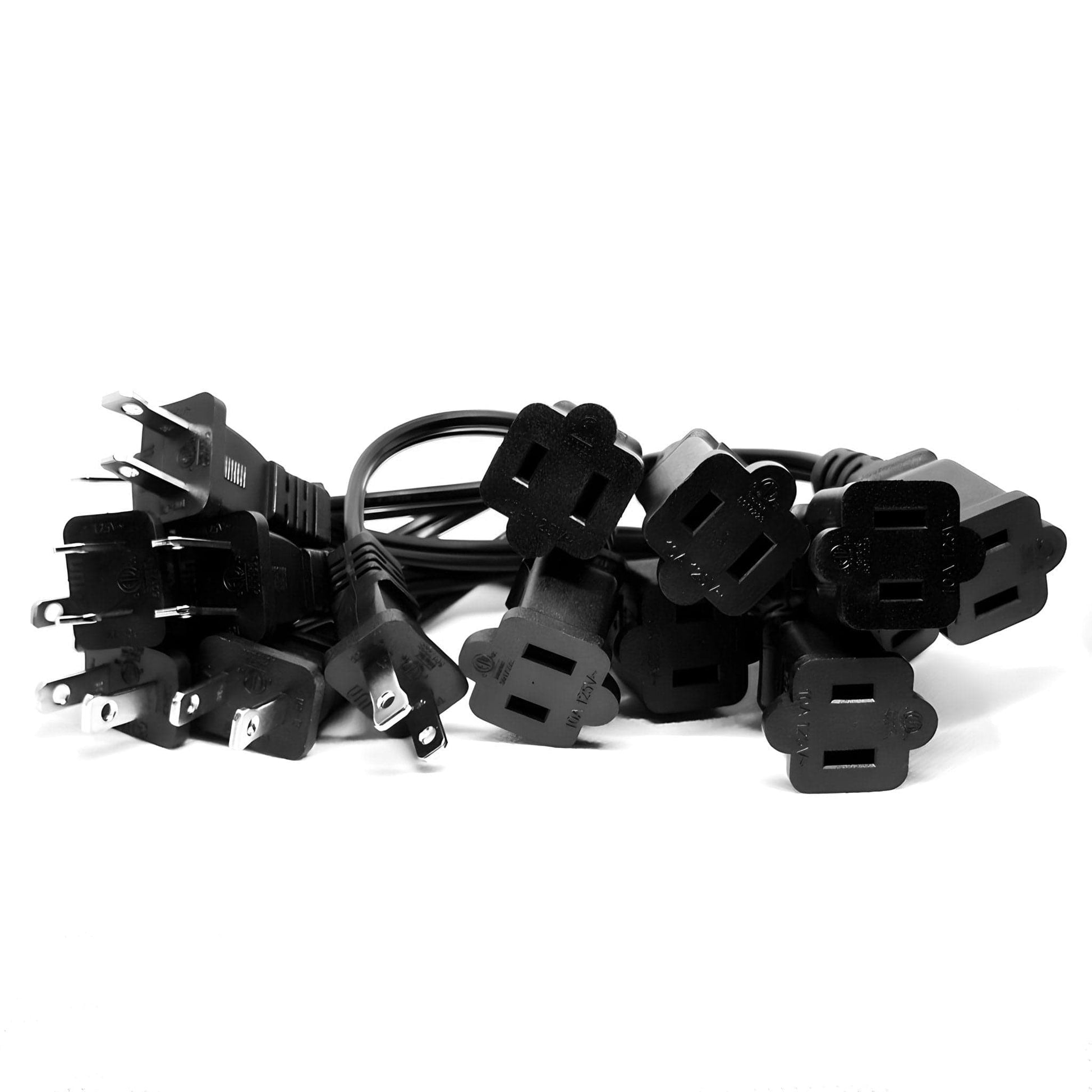

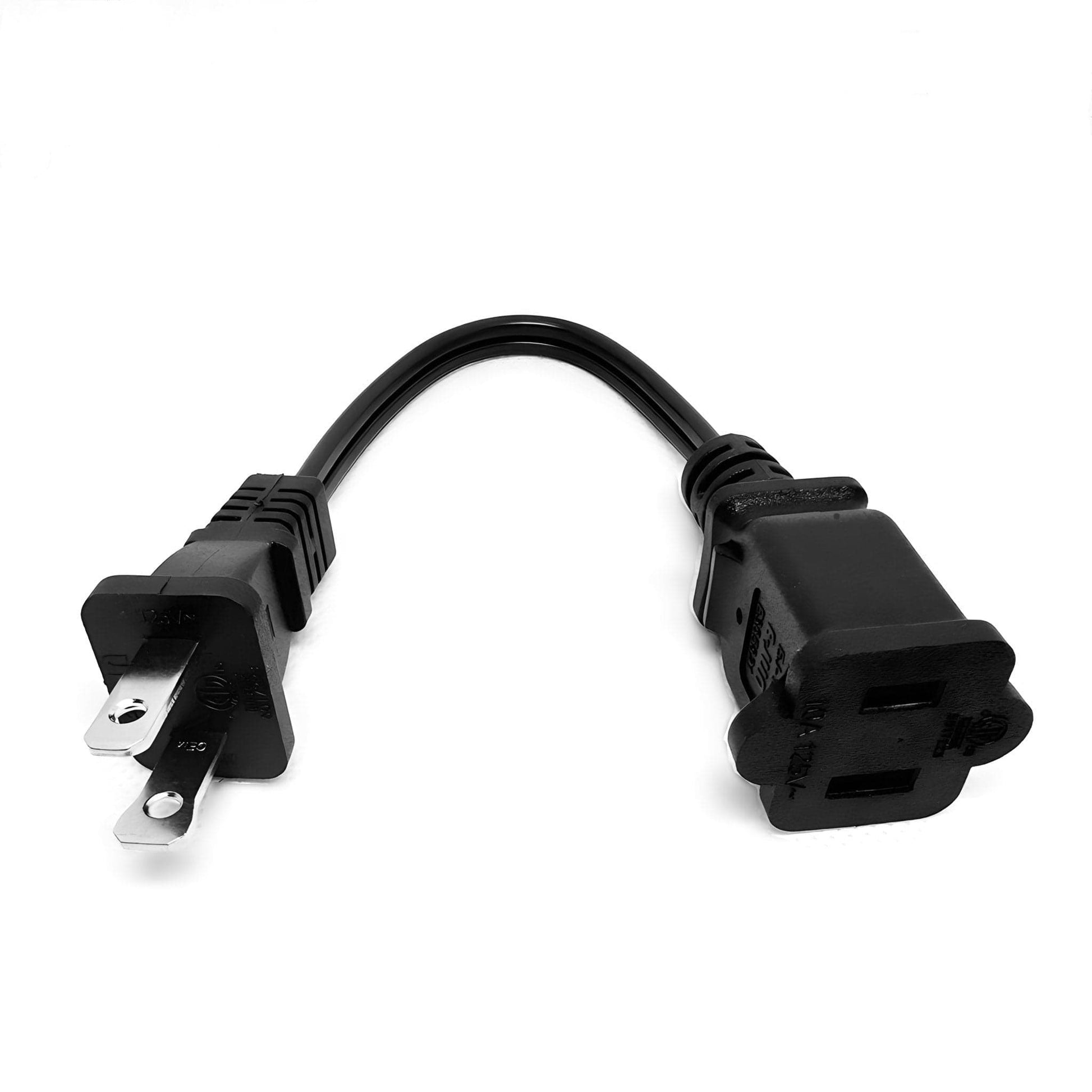

This bundle includes the GFade controller + our 4 inch pigtail extension kit that makes it easy to use SPT plugs and your custom extension cords with the GFade controller. Comes with 8, 4 inch extensions to make using SPT plugs with the GFade super easy.
NEW Feature: Gfade Sync! GFade 8: a first of its kind, easy to use, fully programmable, Christmas light chase controller that's about to rock your world! This bad boy is not your average run-of-the-mill chase controller. Oh no, it is a professional, top-of-the-line, 8-channel wonder that will blow your mind with its unmatched performance and ease of use. And with the latest firmware update available at gfade.com, you can synchronize multiple GFade controllers together so they function as one! You now have the most powerful and flexible chase controller ever made AND the only chase controller in the world with expandable channel outputs. Need more outputs? Just add another GFade!

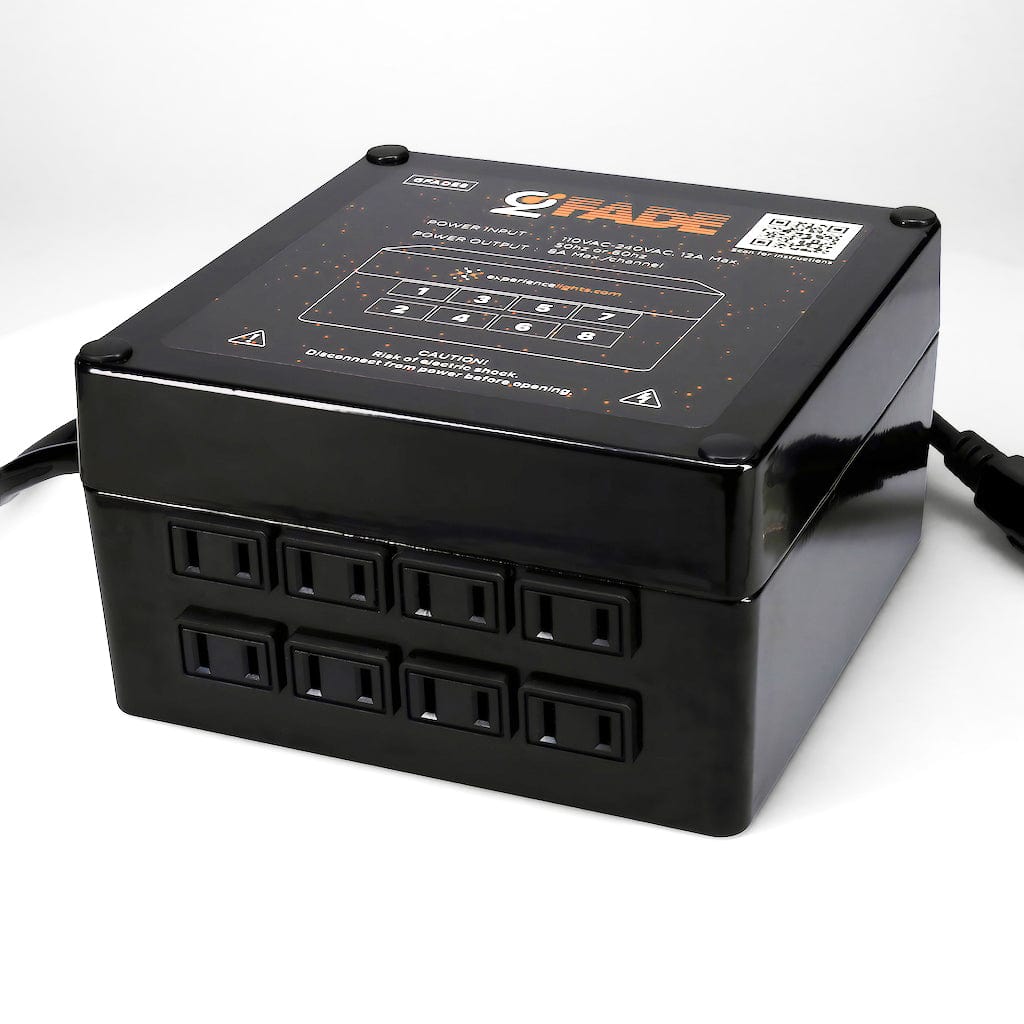

Housed in a tough-as-nails waterproof aluminum enclosure, this baby is built to withstand anything you throw at it. And you can be up and running, with fully custom animations and more, in just a few minutes.
But wait, there's more! Prepare to be amazed by the advanced features of the GFade 8. With WiFi access for web-based configuration, you can effortlessly customize your settings and create mind-blowing animations. The web-based (that's right, no app to download or install!) drag-and-drop timeline interface allows you to create any lighting animation you can imagine.
Speaking of animations, this chase controller comes pre-loaded with built-in animations that are ready to go as soon as you plug it in. No time wasted, no hassle. And if you're a control freak (we won't judge), the scheduling function allows you to start and stop animations on your own terms.
We know flexibility is key, which is why the GFade 8 packs a punch with a maximum output of 8A per output. Plus, it works with a wide range of power inputs from 110VAC to 240VAC (50-60Hz). So whether you're working on a small project or going all out with a massive installation, this controller has got your back.
Get ready to take your lighting game to the next level with the GFade 8. It's not just a chase controller, it's a fully programmable powerhouse that will make your lights dance like never before.
Can I Sync More Than One GFade Together If I Need More Outputs?
YES! With the latest firmware update available at www.gfade.com you can set one GFade as the primary controller and the rest of your GFade controllers to "Sync from Primary" and you will have an ever-expanding network of animation outputs.
Does It Synchronize to Music?
No. The GFade 8 is an extremely feature rich 8 channel chase controller. It does not synchronize to music or have any audio capability.
Do I Need A Computer to Program Custom Patterns?
Yes. You can control many of aspects of the GFade by connecting to it from a mobile browser, but in order to program custom patterns, you will need to connect to the GFade through a desktop or laptop computer.
Check out all of our walk through and tutorial videos in the "MORE INFO" tab.
| Chase Controller Specifications | |
|---|---|
Review Rating |
|
Item SKU |
TCLE-GFADE-8-KIT
|
Number of Outputs |
1, 2, 3, 4, 5, 6, 7 or 8(max)
|
Speed Control |
Yes
|
Max Amps Per Channel |
8
|
Max Amps Per Controller |
12
|
Enclosure Require for Outdoor Use |
No
|
Grounded Plug |
Yes
|
Polarized Plugs |
Yes
|
Wire Color |
Black
|
Collapsible content
More Information

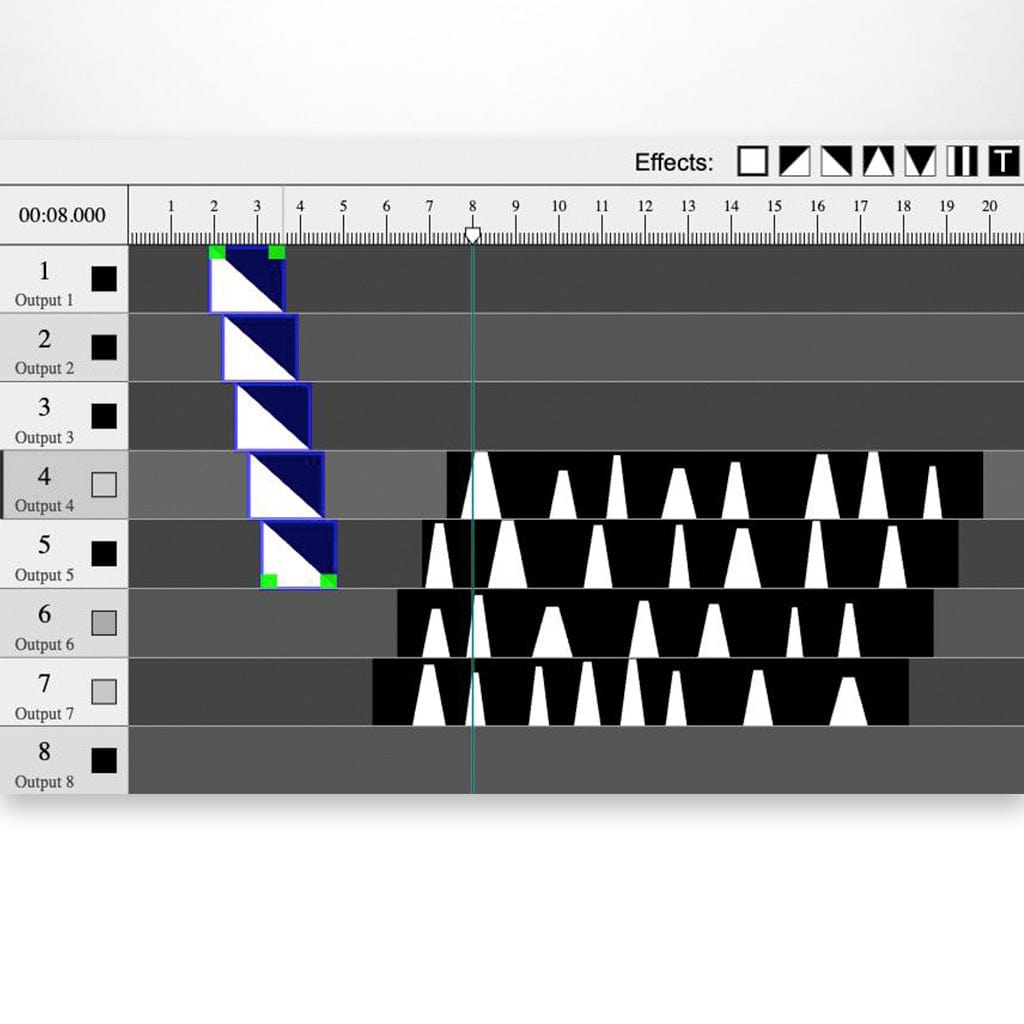

Using the built in animation editor, accessible via a standard web browser over wifi, you can setup your animations to function in any way you like. Each on and off function is programmable on a timeline. Hence, you can set both the on and the off time for each output independently and to any value that suits your need. The GFade is the most flexible chase controller ever created.
GFade 8 Latest User Guide and Firmware updates: www.gfade.com
GFade 8 First Look: Video (A first look video that steps through the user guide and features of the GFade 8 Chase Controller - 57 minutes)
GFade Output Examples: Video (what some of the present and out custom animations created in our Quick Start video look like what output to lights - 8 minutes)
GFade Quick Start - Using the preset animations: Video (45 seconds)
GFade Quick Start - designing 3 custom animations and setting them to run on a schedule: Video (4 minutes)
Specifications
- 8 Output Smart Chase Controller
- Can function as a 1, 2, 3, 4, 5, 6, 7 or 8 output chase controller - fully programmable
- Input: 110VAC-240VAC input (50 or 60hz)
- Max Total Controller Load: Max 12A
- Max Load Per Output Channel: Max 8A
- WiFi access for web based configuration and custom animation
- Built in Scheduler to start/stop animations at certain times, with internal time keeping to maintain clock in case of power outage
- Built in animations for immediate plug and play operation

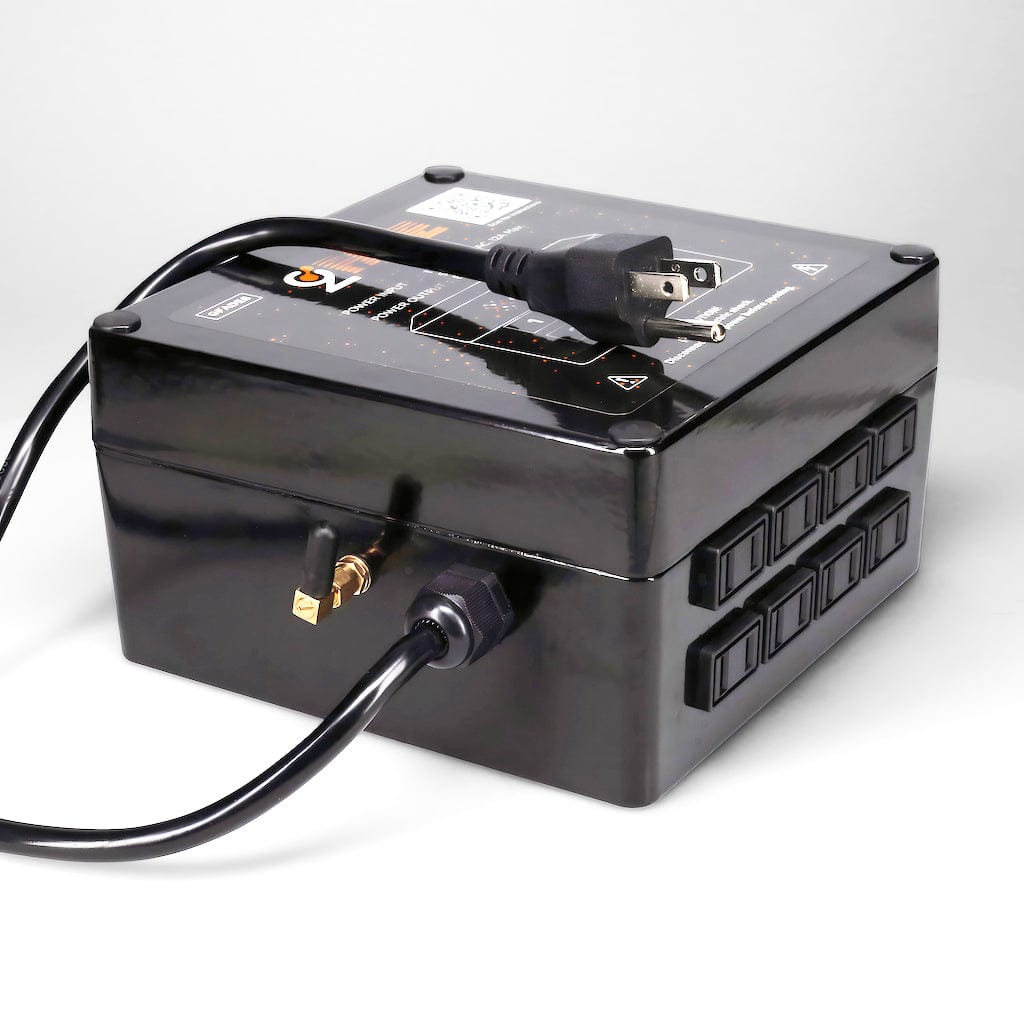

- Removable external WiFi Antenna (note: if you choose to remove the external antennae, be sure to cover the antennae port with a weather proof rubber plug or cap designed for N Female/UHF S0239 ports, not included)
- Durable aluminum waterproof enclosure
- Dimensions of retail box: 9" x 9" x 4
- Dimensions of product: 6.3" x 6.3" x 3.5"
- Power Cord Length: 24 inches
NOTE: The output ports on the GFade are designed for use with store bought extension cords. You can also plug standard light strings directly into the output ports. SPT plugs will not fit when using side-by-side output ports on the GFade.
